Barcode Verifier Products

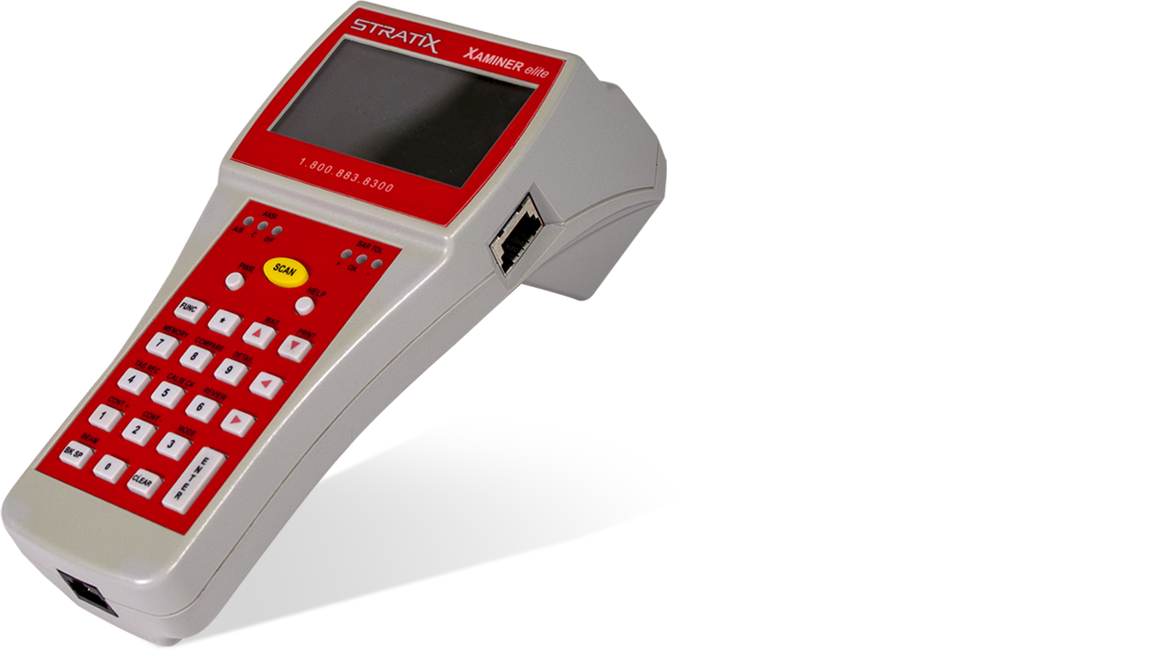

Our Xaminer Pro IS, Pro Plus and Pro Point & Shoot barcode verifiers give you the industry’s highest quality barcode verification for either 1D or 2D (GS1 DataBar and PDF-417) barcodes – all in a single unit.

Your Xaminer Pro verifier also changes with your growing needs. All Xaminer Pro verifiers come equipped with expandable firmware, allowing for future upgrades.

Features & Benefits

• ANSI/ISO & traditional grading
• No daily calibration required
• Element detail analysis
• Corrugated setting – adjusts symbol contrast per Fibre Box Assoc. Guidelines
• Compliant with ISO/IEC 15416, ISO/IEC 15426-1 standards
• Calibrated to applied image UPC primary calibration standard test card (NIST Traceable)

An affordable and easy-to-use PC-based 2D barcode verifier, the Xaminer eZ-2D verifier provides a cost-effective verification solution for your 2D barcodes.

Sorting Data Matrix (ECC-200) and QR code, the Xaminer eZ-2D used in combination with the Xaminer Pro will satisfy your barcode verification needs.

Features & Benefits

• Most affordable 2D verifier on the market
• Supports QR code & Data Matrix (ECC-2D)
• Partial ISO/IEC grading (ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 15426-2, ISO/IEC 18004)
• Calibrated to GS1 Data Matrix Calibrated Conformance Standard Test Card (NIST Traceable)

The LVS 9510 is a 1D and 2D desktop barcode verifier designed for offline verification of barcodes to ISO/IEC standards. High-resolution inspection of the barcode is possible with a 5.0-megapixel high-resolution camera, which allows reading and analyzing every two thousandth of an inch (.002 in/.05 mm) of the barcode height; this exceeds the minimum ten-scan average required by ISO. The LVS-9510 is certified by GS1 US and is 21 CFR Part 11 compliant-ready.

The LVS 9570 is a 1D and 2D handheld barcode verifier designed for offline verification of barcodes to ISO/IEC standards. Integrated line scan imaging technology provides accuracy and repeatability, while sensor technology permits more detailed analysis of the barcode and makes reading small truncated codes possible. The LVS-9570 is 21 CFR Part 11 compliant-ready.

The LVS-9580 is a high-performance handheld solution for offline barcode verification to ISO/IEC, GS1, and UDI standards. Featuring a high-resolution 5.0 megapixel camera, the LVS-9580 reads and analyzes linear 1D and 2D codes up to 76.19mm (3.0 in) wide and up to 57.15 mm (2.25 in) tall. 1D and 2D direct part marks (DPM) of up to 44 mm x 44 mm (1.75″ x 1.75″) can be verified to MIL-STD-130, ISO, and GS1 standards.

The LVS-9585 is a high-performance handheld barcode verifier for offline barcode verification to ISO/IEC and GS1 standards. Featuring a high-resolution 5.0-megapixel camera, the LVS-9585 reads and analyzes linear 1D and 2D codes up to 76.19mm (3.0 in) wide and up to 57.15 mm (2.25 in) tall. 1D and 2D direct part marks (DPM) of up to 44 mm x 44 mm (1.75″ x 1.75″) can be verified to MIL-STD-130, ISO, and GS1 standards.
